Samples of reference controllers

Here are some samples of all in one Ruby controllers:

3D printed VRx:

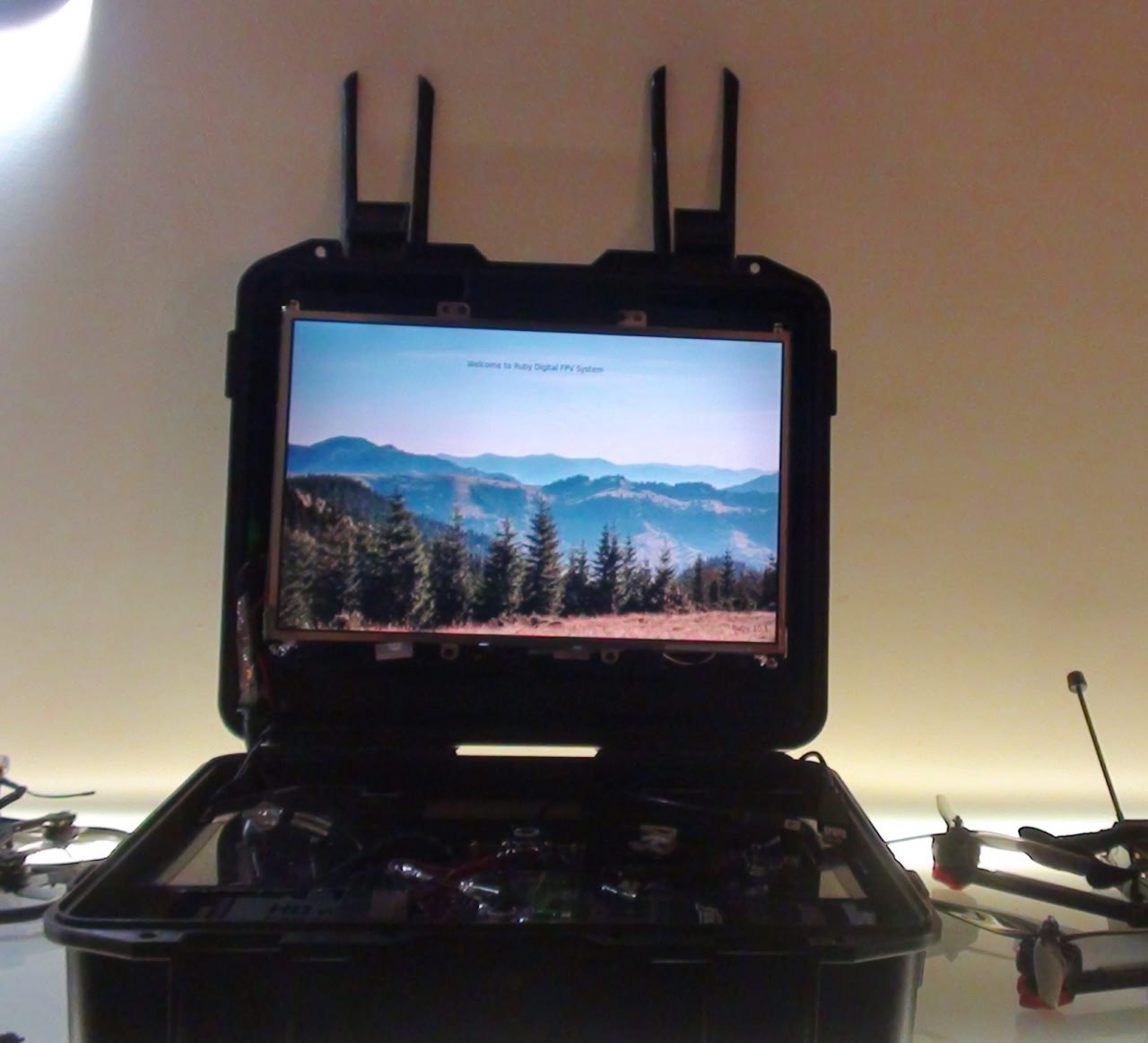

Portable ground station

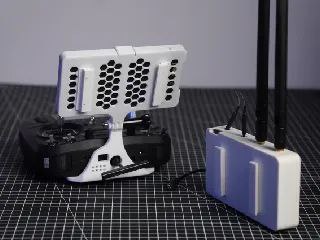

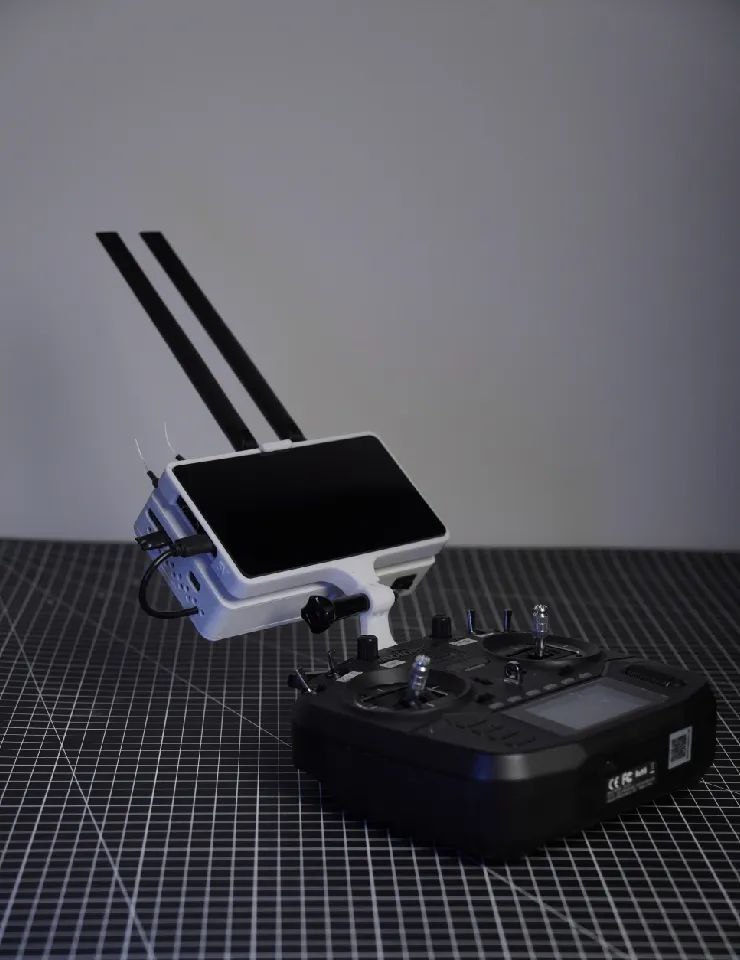

Detachable portable ground station

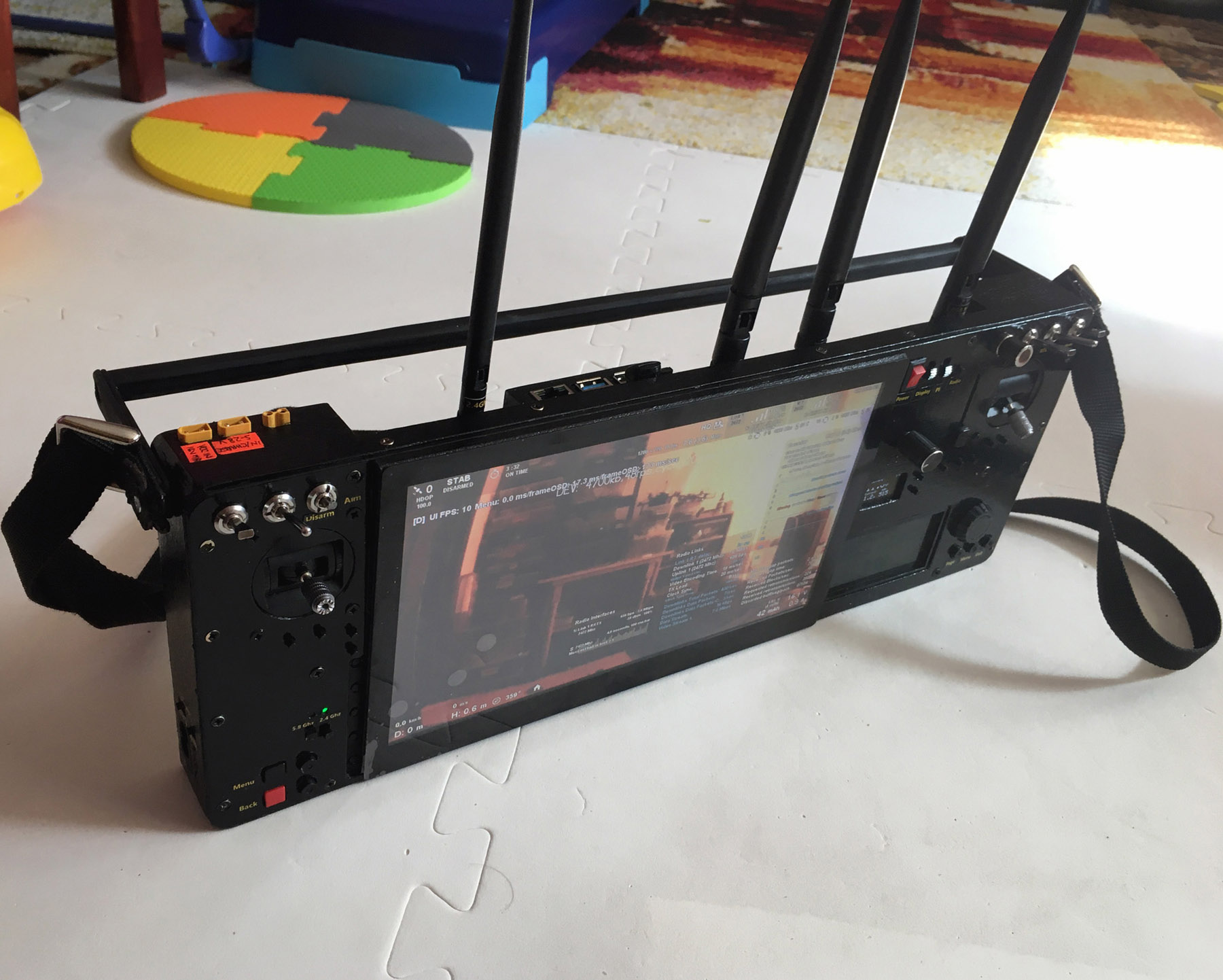

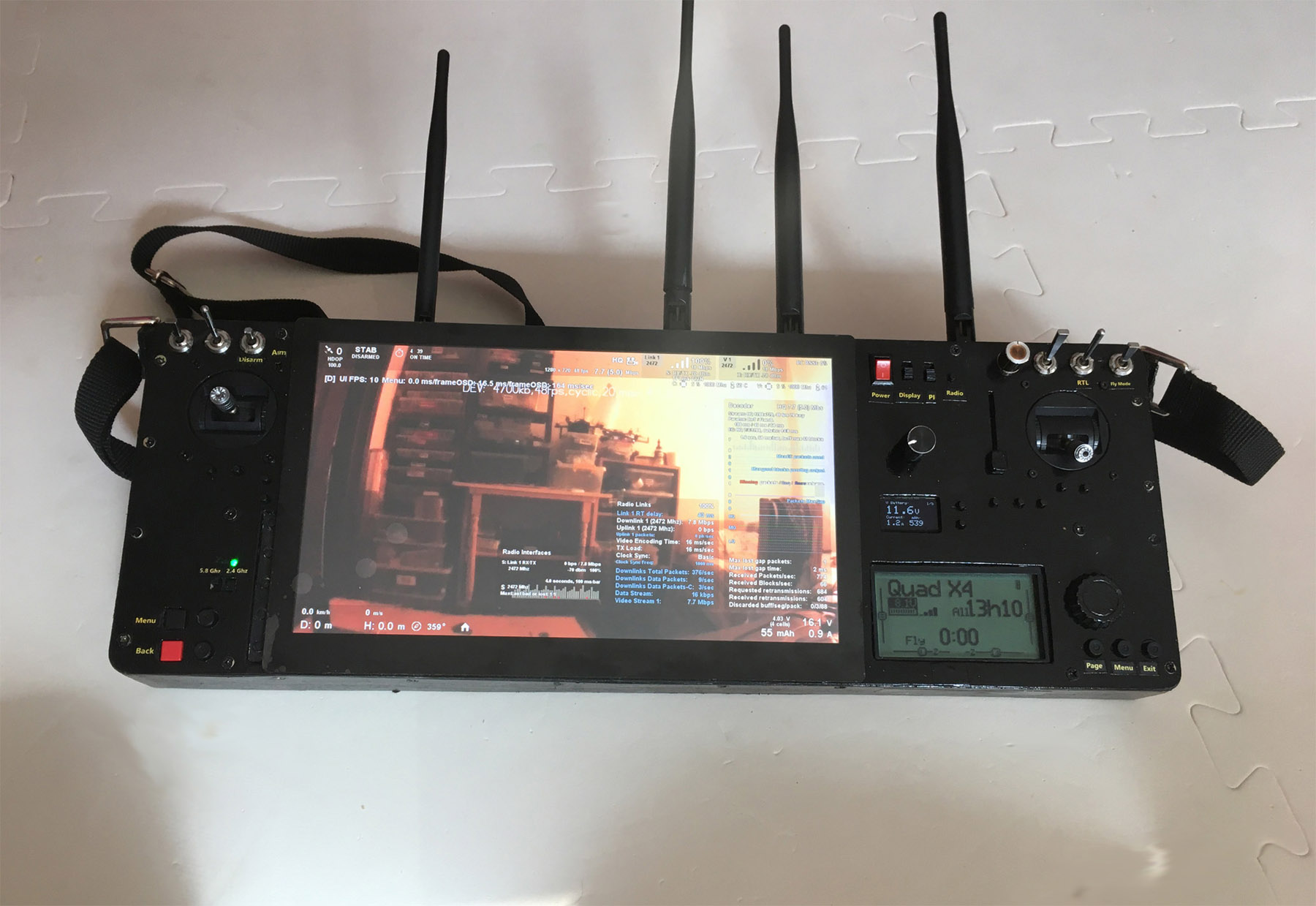

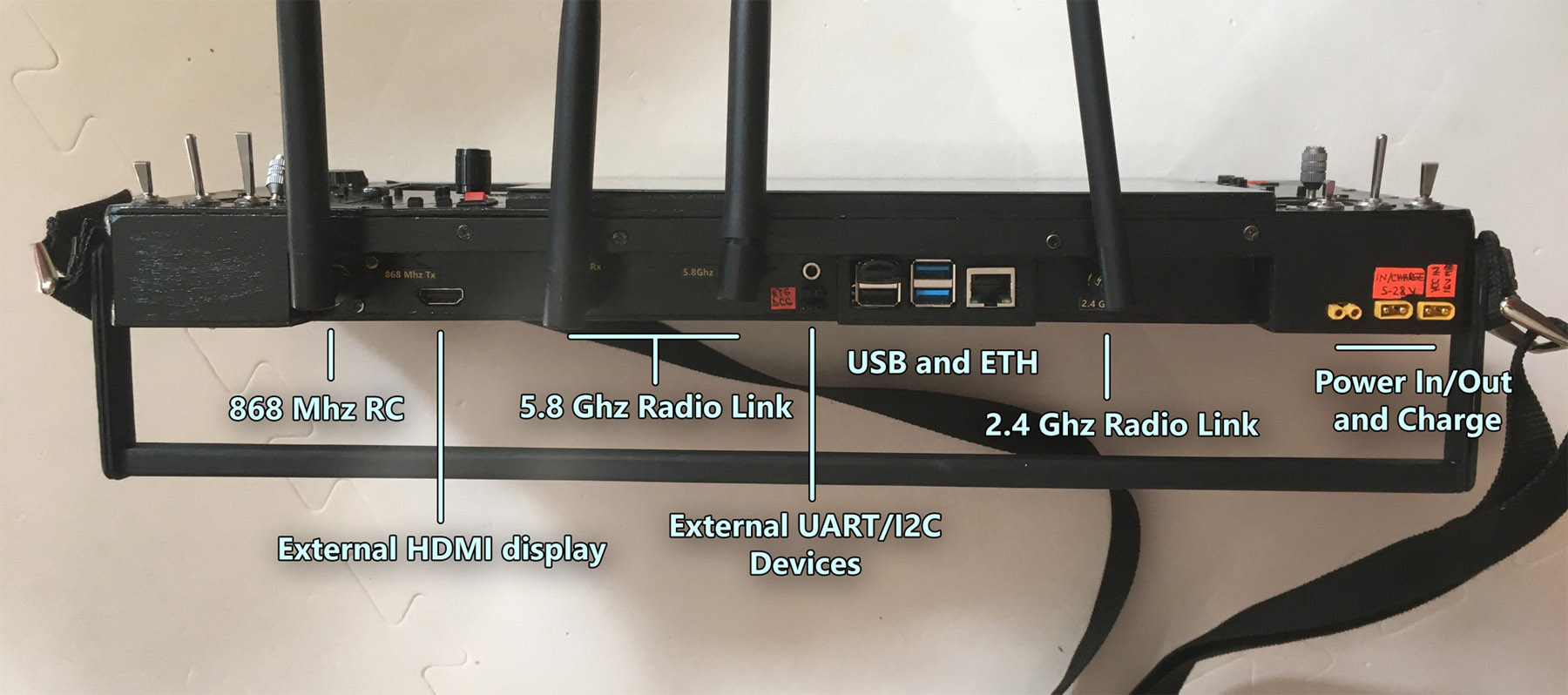

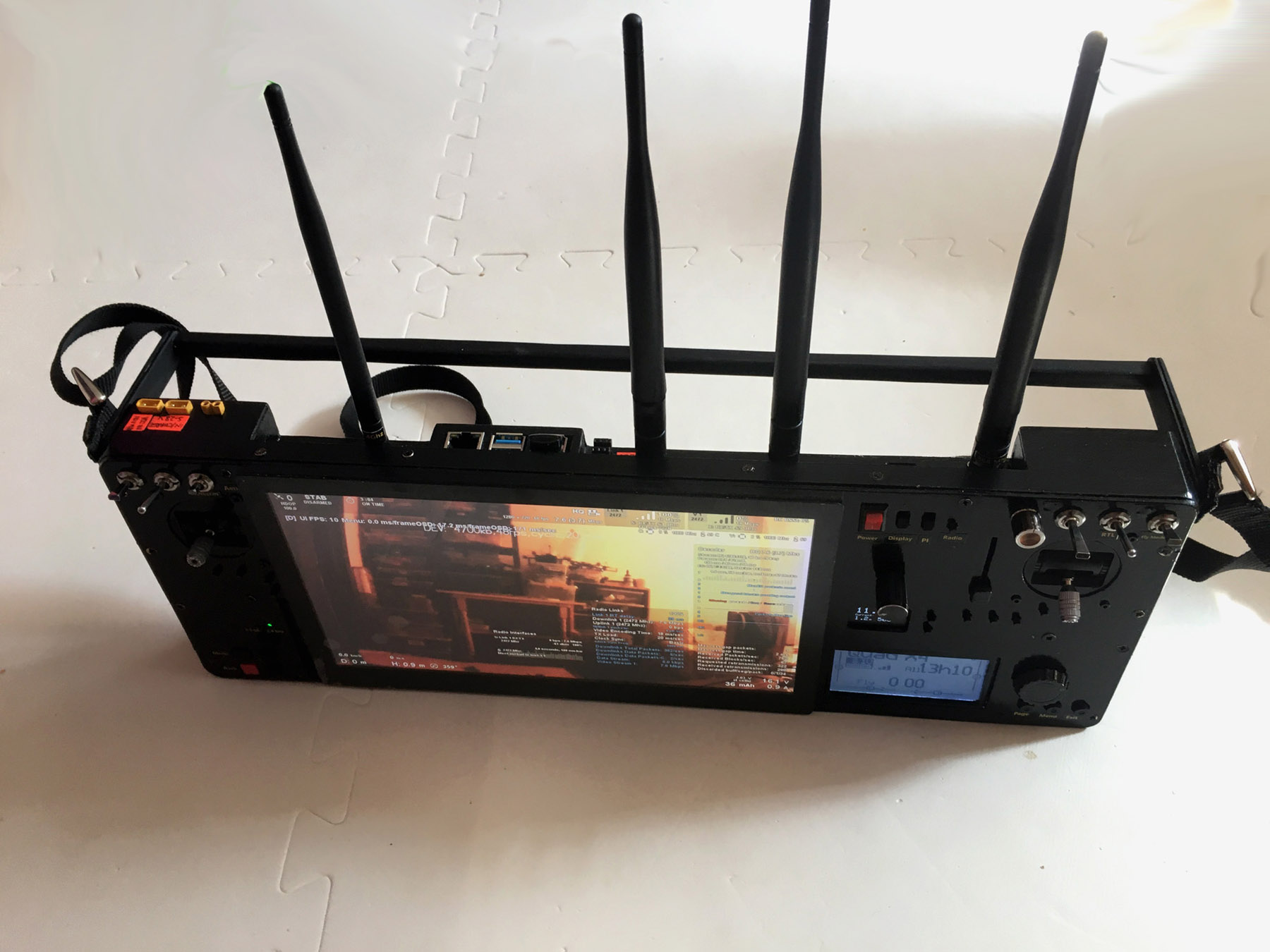

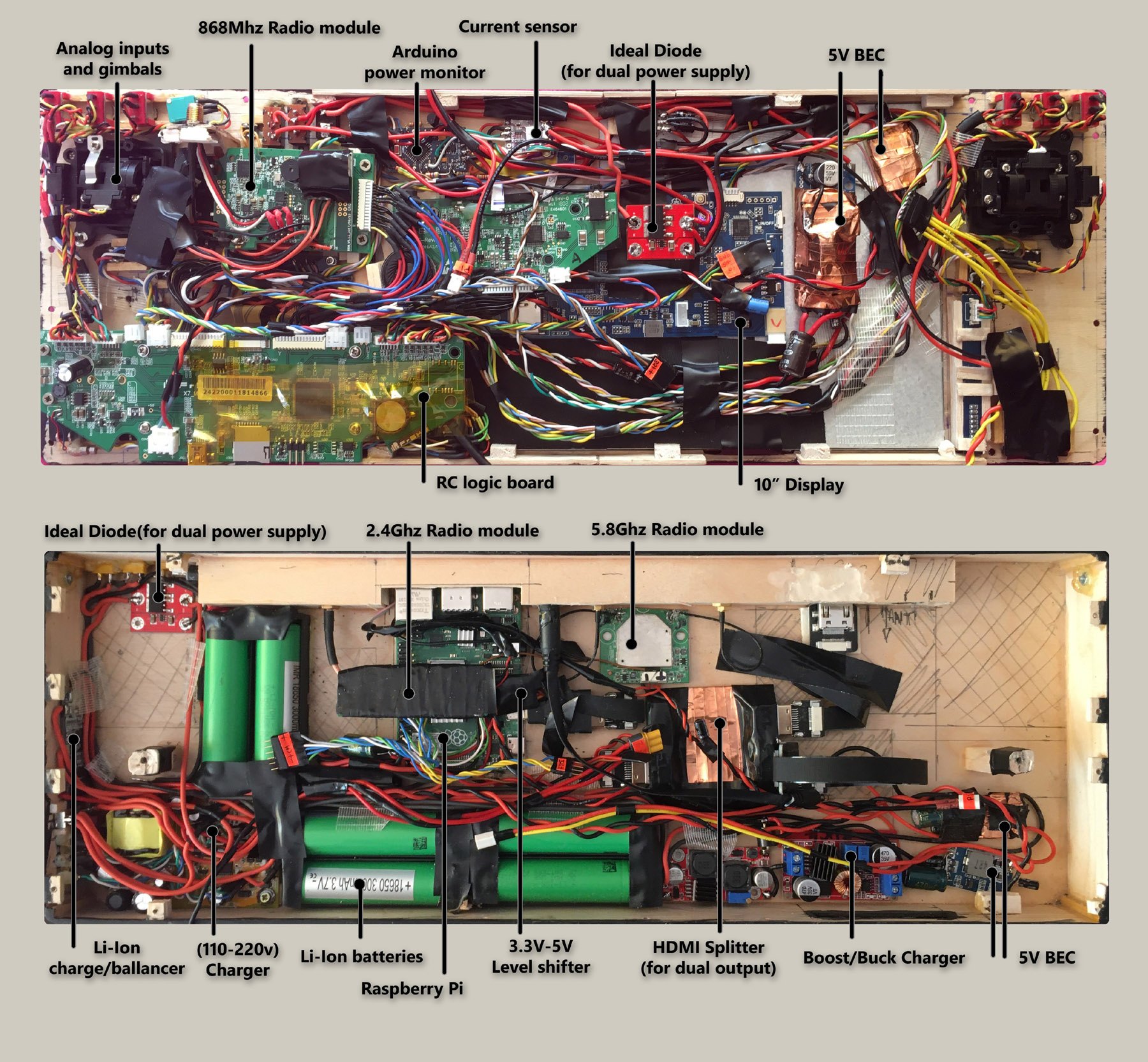

10 inch AIO controller:

• 10 inch display; External additional display supported too;
• 868Mhz long range RC link;
• Dual 2.3/2.4/2.5 Ghz and 5.8 Ghz radio links;
• Internal (6000mAh 12V) and external power supply; Internal power supply can power everything for 6 hours;
• Support for auxiliary external I2C, UART, ETH and USB devices;

AIO Controller, 10 inch display AIO Controller, 10 inch display AIO Controller, 10 inch display

AIO Controller, 10 inch display AIO Controller, 10 inch display

Remember! For best performance, always shield the RF components and add filtering capacitors on all power lines and near power consummers.

Other ground stations:

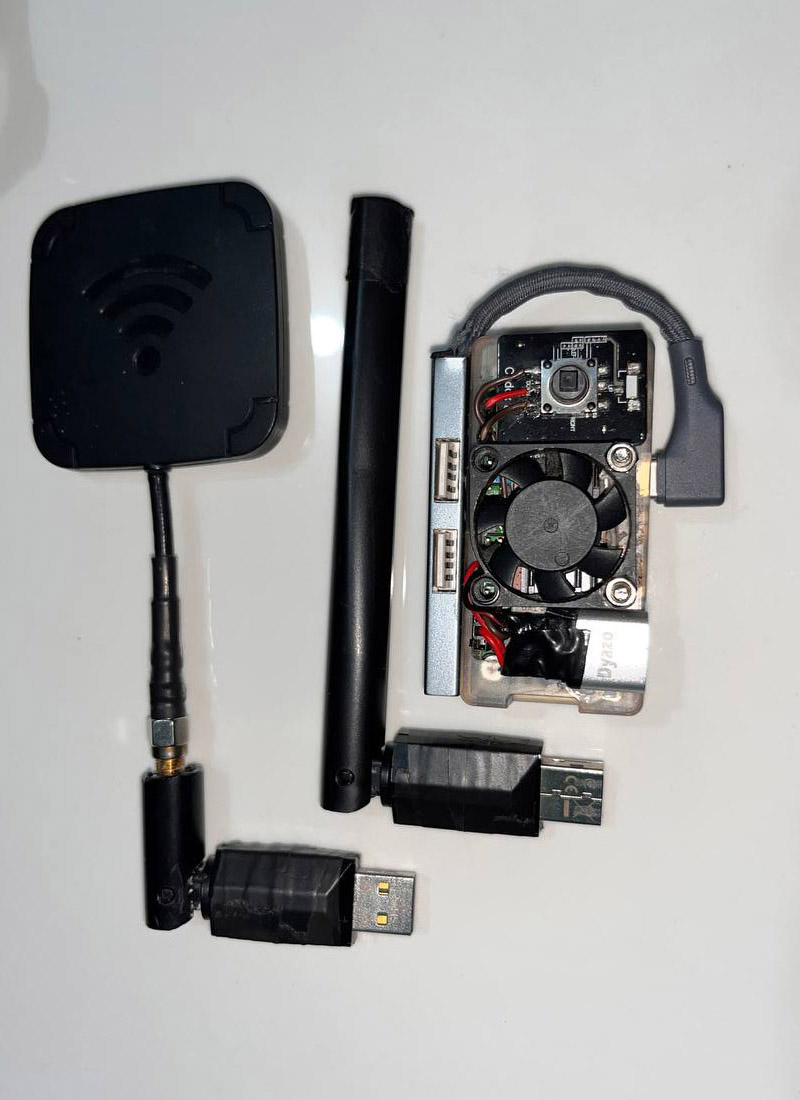

Portable ground station: Radxa, DiversityRx + 4W Power Amp, 7000mAh

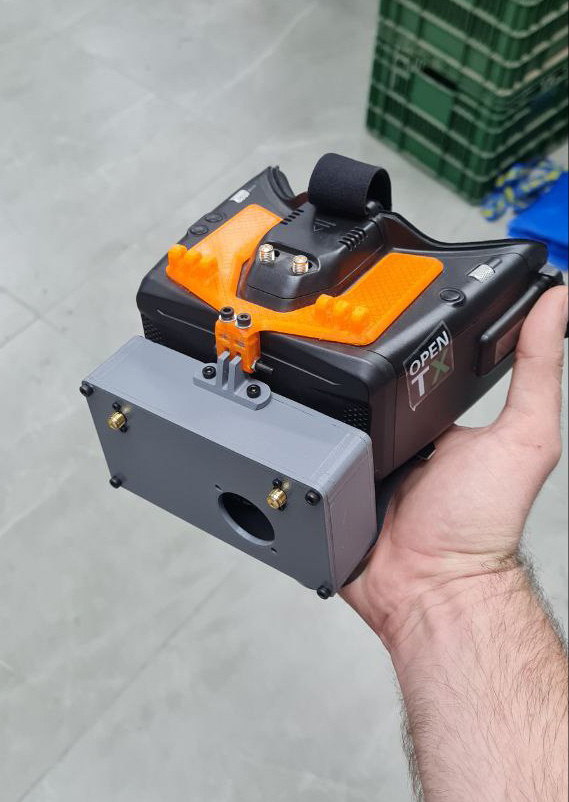

Googles VRx module: Radxa, DiversityRx. Powered by googles battery

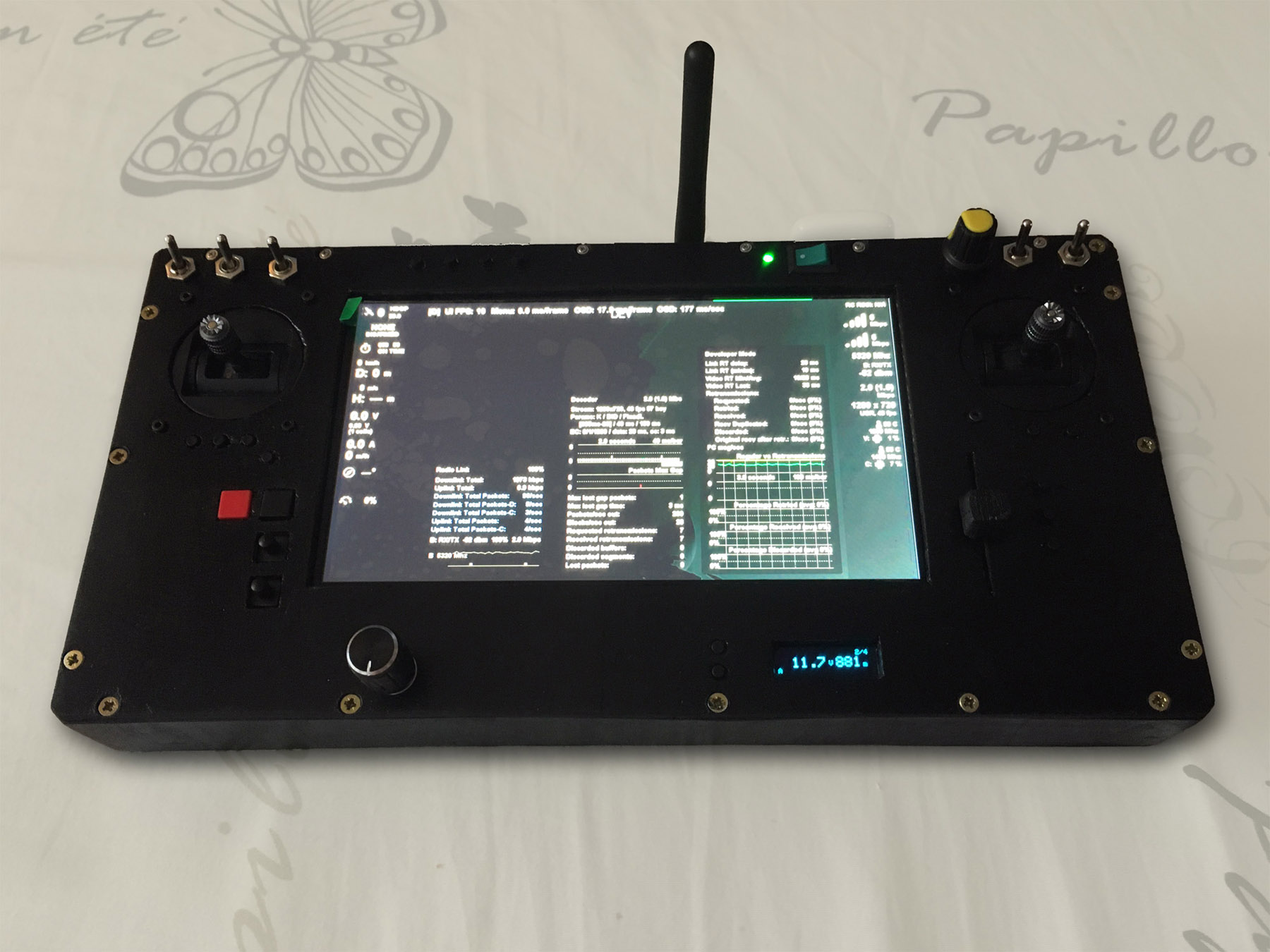

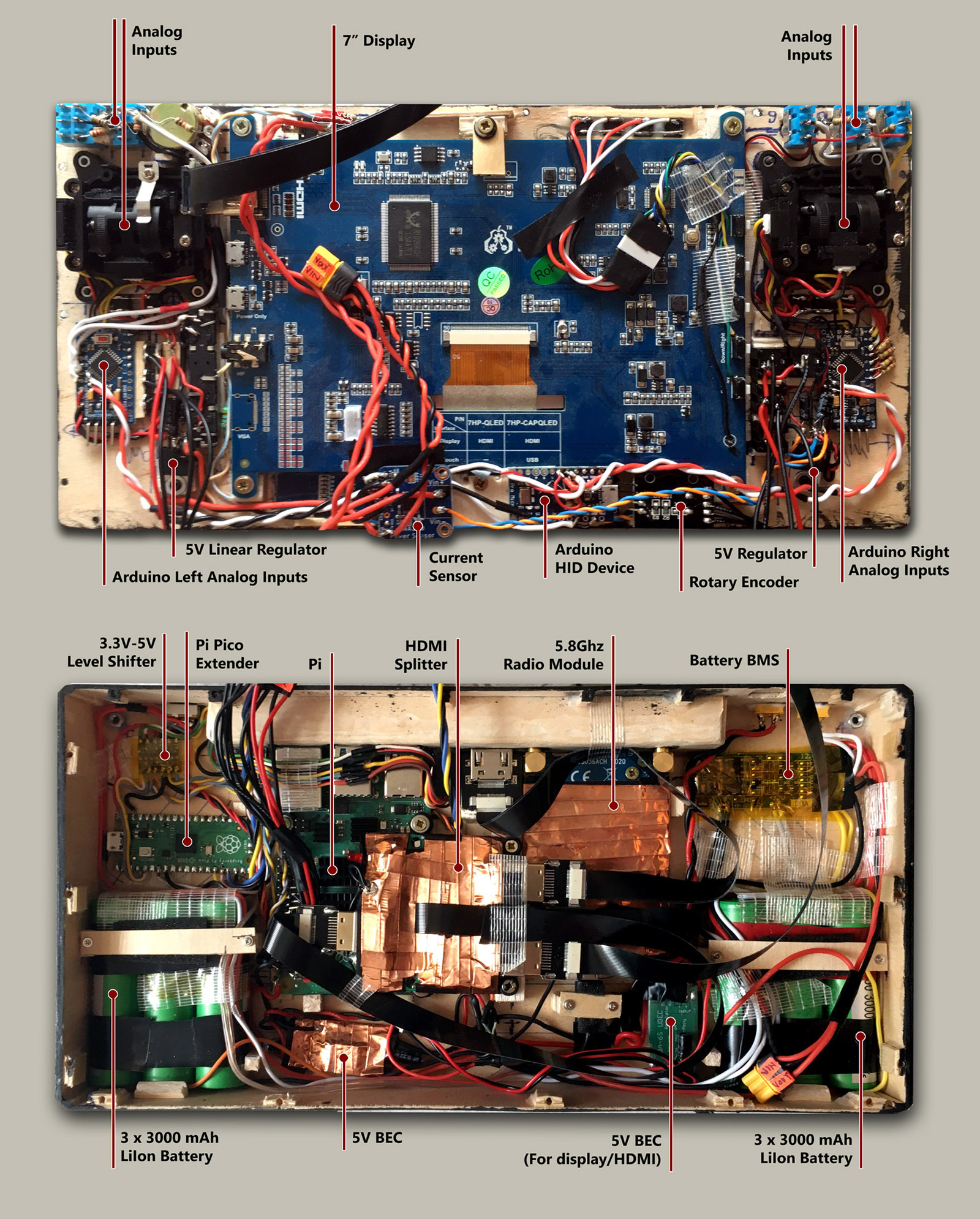

7 inch AIO controller:

• 7 inch display; External additional display supported too;
• 5.8 Ghz radio link;
• Internal (6000mAh 12V) and external power supply;

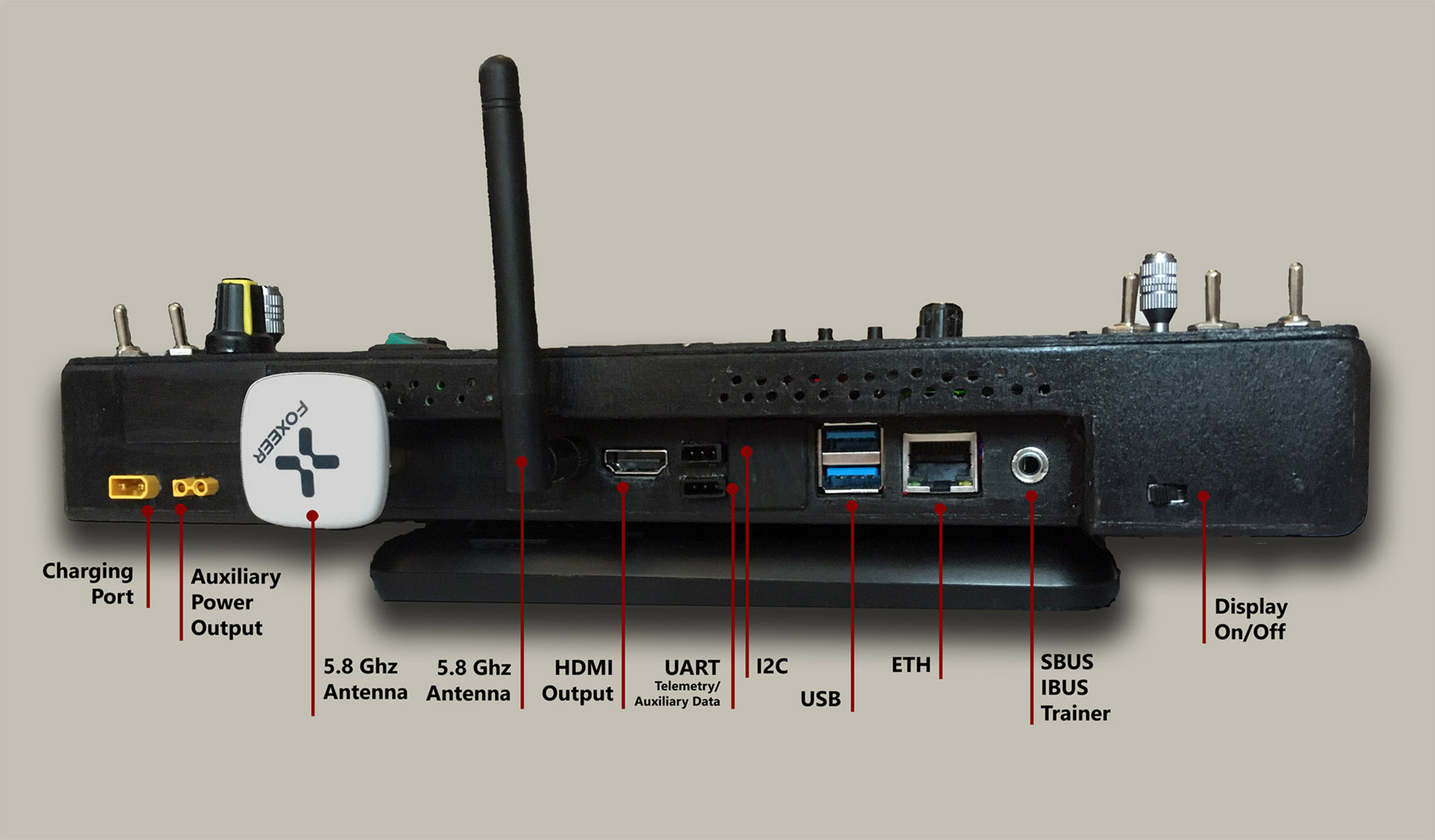

• Support for auxiliary external I2C, UART, ETH and USB devices;

AIO Controller, 7 inch display AIO Controller, 7 inch display

AIO Controller, 7 inch display

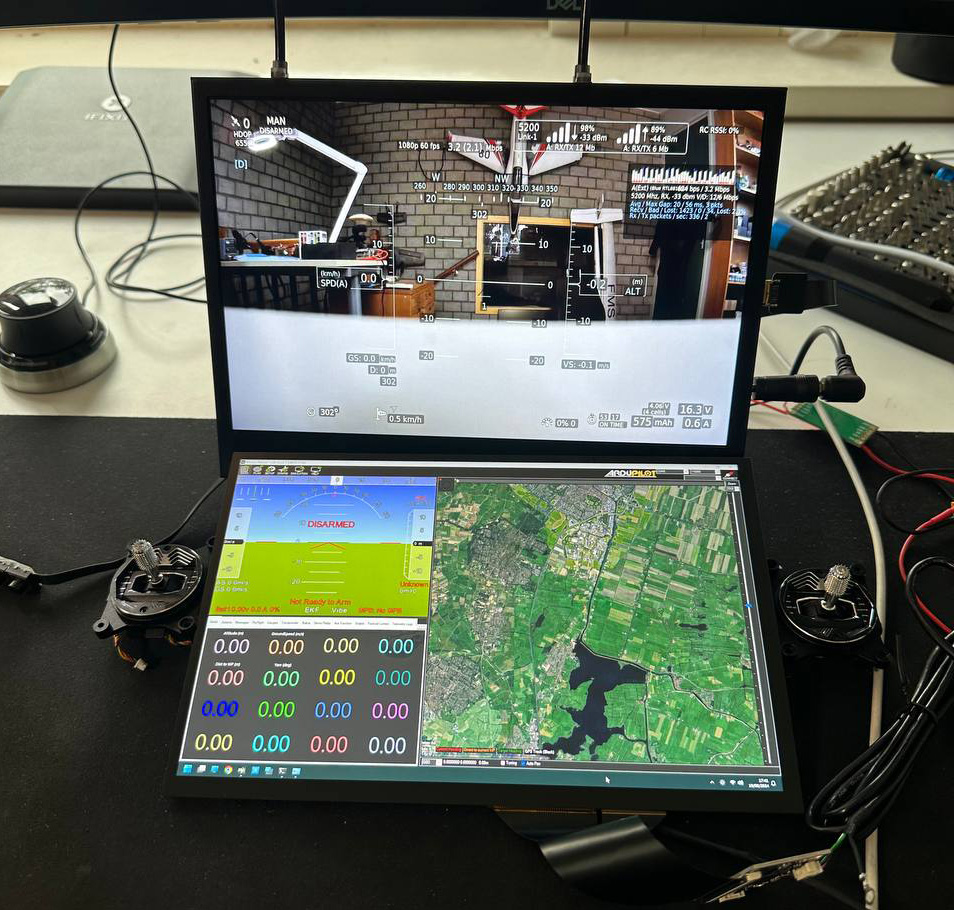

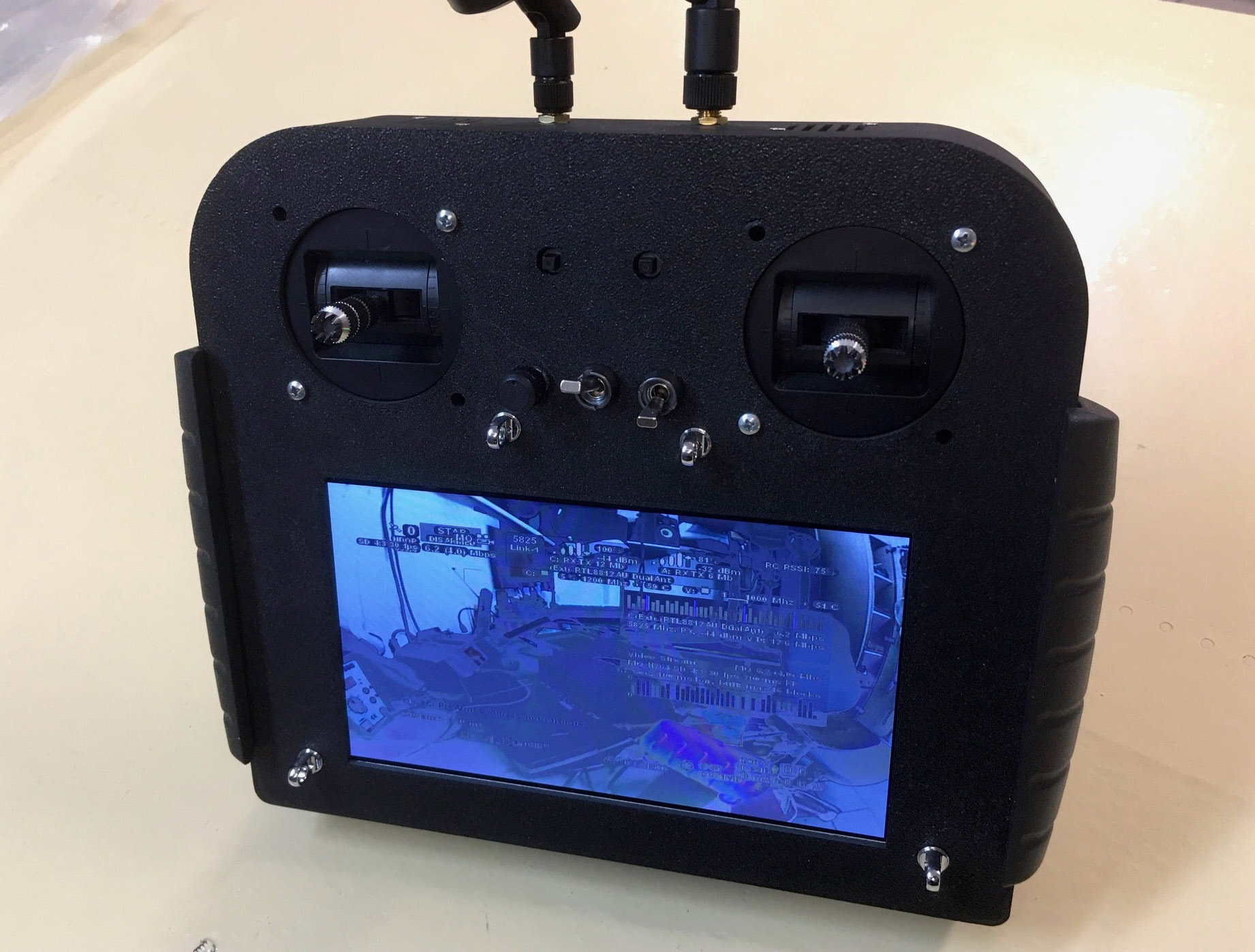

Other AIO controllers:

AIO Controller

Googles
